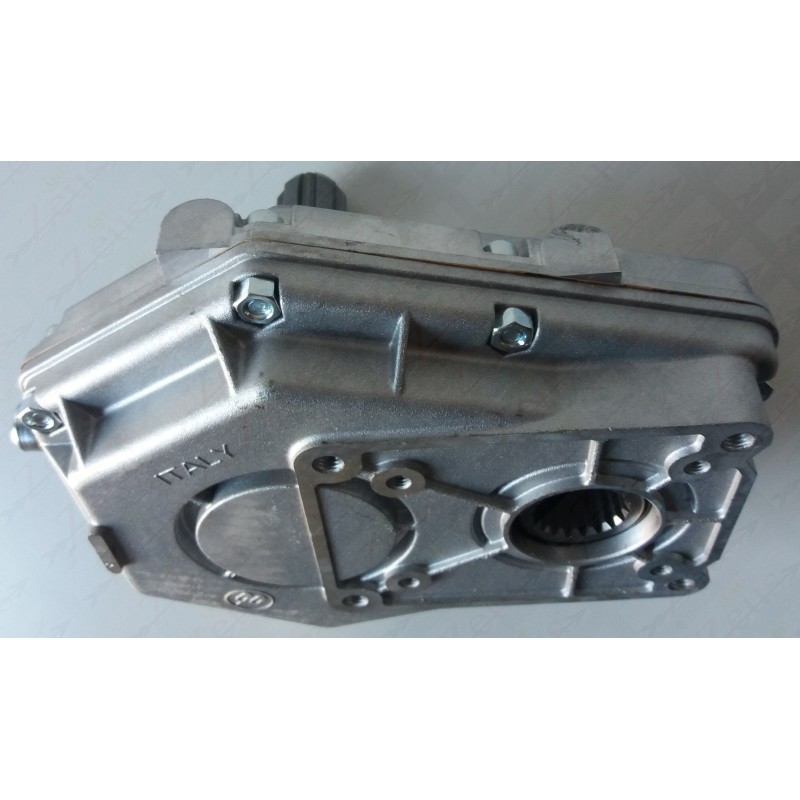

Moltiplicatore gruppo 3 maschio, rapporto 1:3,8

Male male group multiplier, ratio 1: 3.8

€178.00

VAT excluded

Applicable on Hydraulic control unit Tecnofruit Herbivora Model

Description
Product Details

Multiplier Gr.3 with male tree 1 & Prime; 3/8, Report 3.5 (e.g. n & deg; rpm 540 / n & deg; laps 1836) with flange attack for hydraulic pumps gr.3.
applicable on Hydraulic control unit Tecnofruit Herbivora model.
predisposed for the assembly of Pumps Group 2.
Multipliers are used for the connection of gear pumps to the force of force of agricultural tractors.
The D&RE regime; Force of Forza & Egrave output; 540 g/1 & RSquo; for which it is compared to d & rsquo regimes, adequate exercise of oleodynamic pumps.
Other D&RE regimes can be suitable; Always entry that the D&RE regime; exit of the multipliers does not exceed 3000 g/1 & rsquo;.
- Boxes: in melted aluminum and cast iron with high mechanical resistance.
- gears: the gears were calculated in compliant & agrave; to ISO/DIN 3990-80 standards and built in UNI 18NICRMO5 steel. The dentition & egrave; Correct and lowered to give kinematism a greater resistance and silence & agrave;.
- Trees: the trees are built in UNI 16CRNI4 steel, coupled with the gears by grooved parts, suitable to bear more the couples foreseen in the catalog.
- couples: the couples expressed in the technical tables of the individual multipliers are those for the continuous work exercise. Couples that occur in intermittent working conditions can be exceeded by 20%.
- Operating temperature: the temperature of the continuous exercise must not exceed 120 & deg; c.
- lubrication: a correct use of oil allows a good functioning and duration of the group.

Reference OPO0012

Condition New
