Steel flange flange for pump 3 holes thread 1" center distance 56
€23.00
Steel flange flange for pump 3 holes thread 1" center distance 56

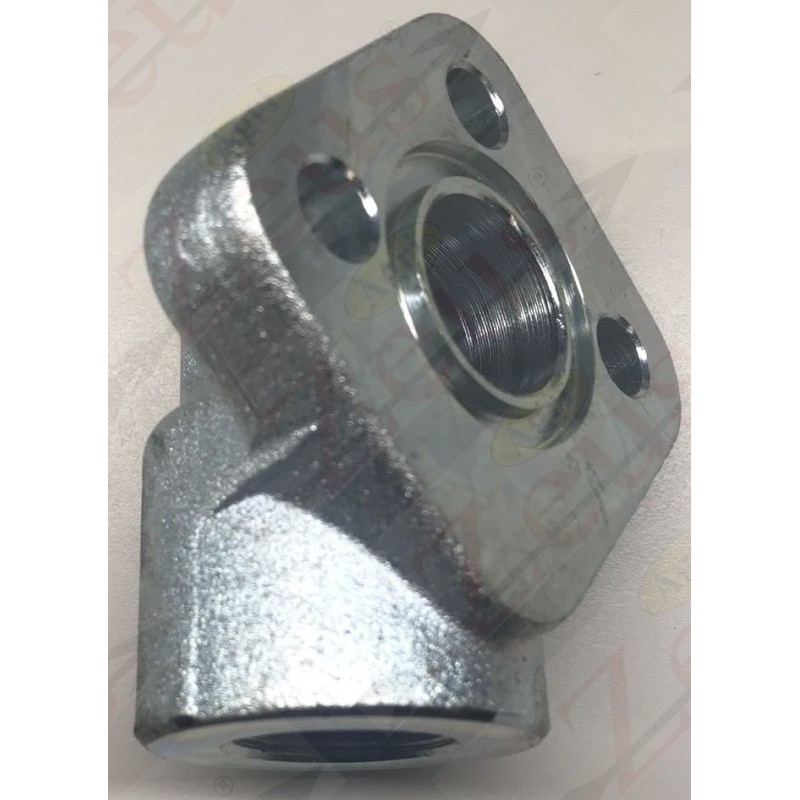

Flange 1” 56mm center distance with 3 steel holes for group 2 and 3 pumps complete with screws and o-rings.

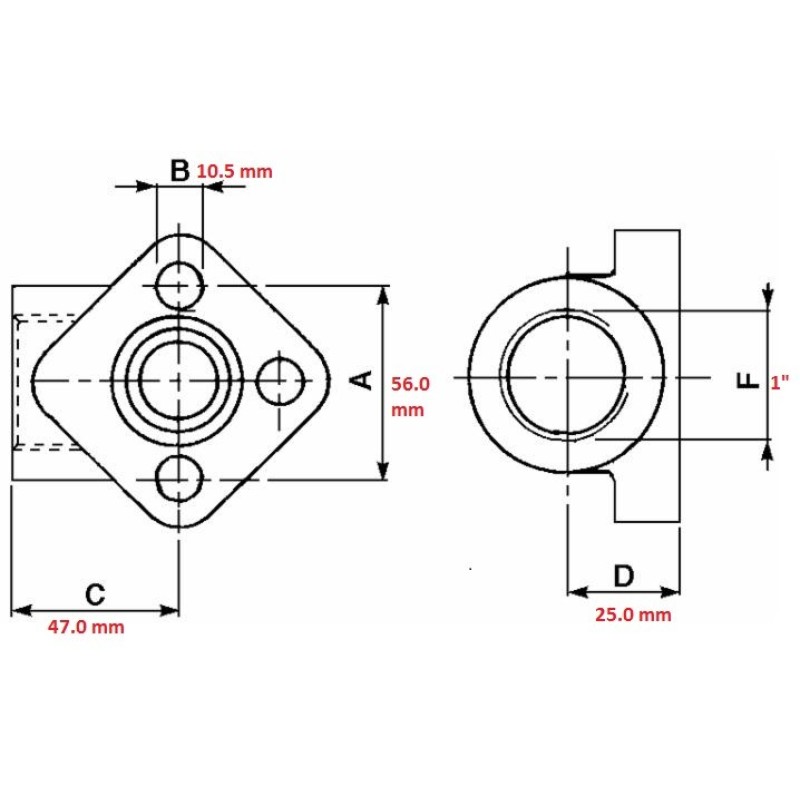

- A mm 56.0
- B mm 10.5
- C mm 47.0
- D mm 25.0
- Left/Right rotation
- usrdef_code_left/right rotation
- 1" thread
- Unit of measurement No.
OPO0034
